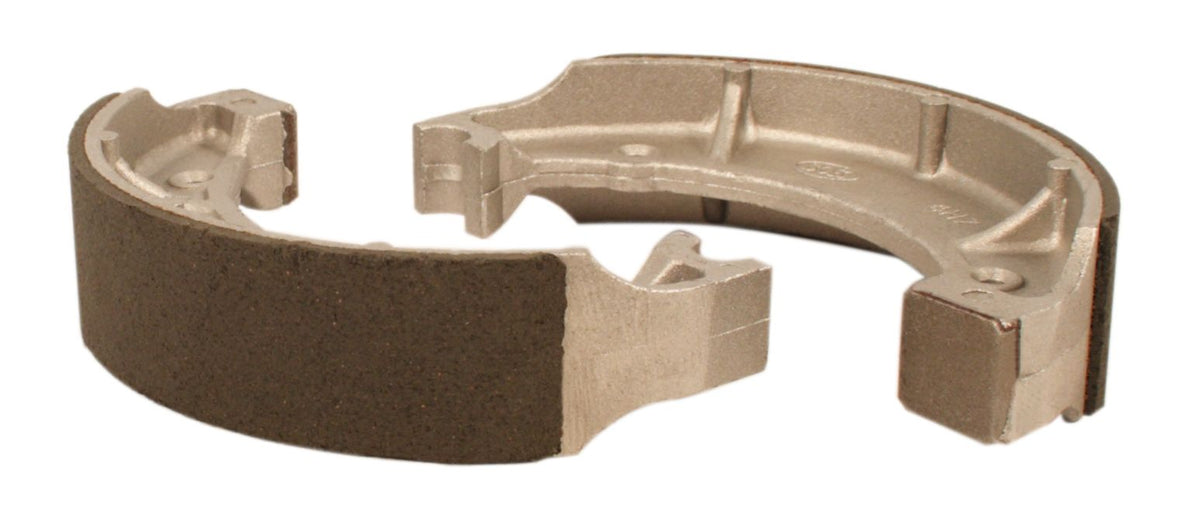

Yamaha XJ550 XJ650 XS500 XV500 Rear Friction Shoes - Replaces Yamaha OEM 4H7-W2536-00
Complete Your Build
Description
Yamaha XJ550 XJ650 XS500 XV500 Rear Friction Shoes - Replaces Yamaha OEM 4H7-W2536-00. This rear brake shoe set provides the friction surface for the drum brake assembly.
Replace shoes when the lining is thin, glazed, oil-soaked, cracked, or unevenly worn, and inspect the drum surface and return springs.
Product Details
| Replaces Yamaha OEM | 4H7-W2536-00 |
|---|---|
| Position / side | Rear |
| Part type | rear brake shoe set |
| Sold | individually |
Fitment / Compatibility
Fits Yamaha:
- TX500 (1973-74)
- XS500 (1975)
- XV500 (1983-85)
- XZ550R (1982-83)
- YX600 (1986-90)
- XJ550 (1981-83)
- XJ650 (1980-83)
- XJ650L (1982-83)
- XV750 (1981-83)
Before Ordering
- Use OEM/reference 4H7-W2536-00 to confirm the correct application
- Confirm rear drum-brake position, shoe diameter and width, pivot/cam end shape, spring layout, and hub application
Fitment
Custom / Universal part
Check compatibility before ordering
Universal does not mean it fits every motorcycle. Compare the dimensions, mounting or connection details, and specifications in the description with your setup. Make sure this is the correct part for your intended use.
Selecting your bike does not confirm fitment for this item.
View product detailsCheck the listed model, year and any fitment notes in the description.
| Make | Model | Years |
|---|
No matching models in this list.
