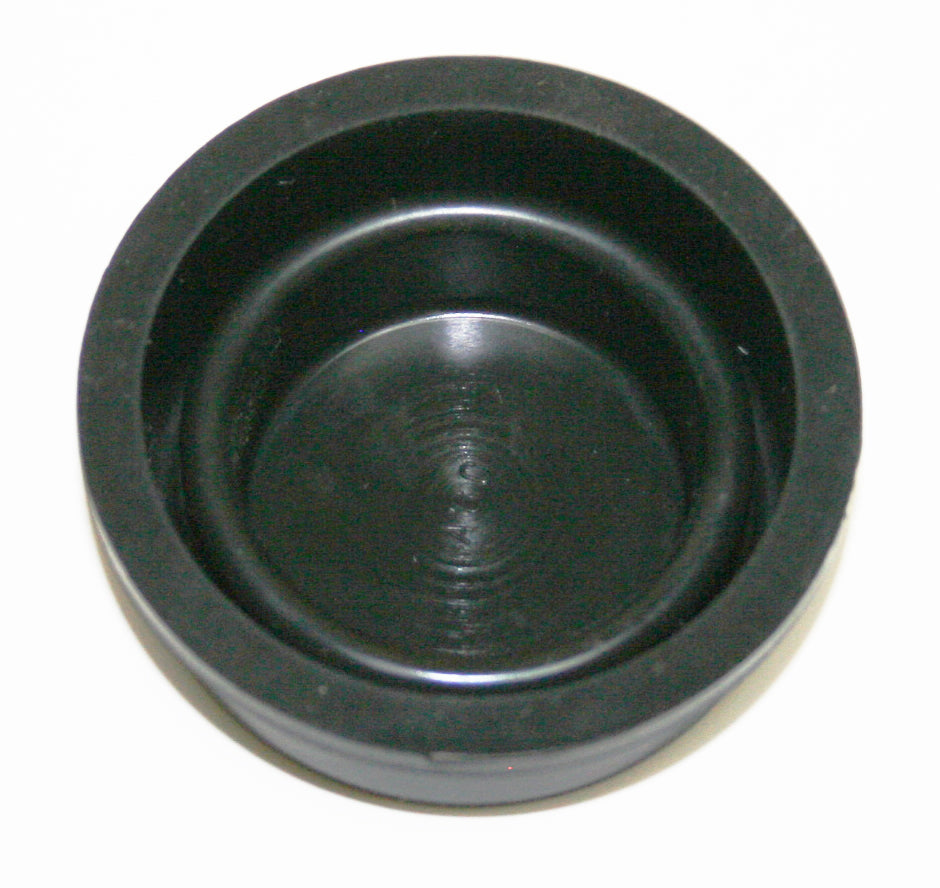

Honda Motorcycle ATV Rear Master Cylinder Reservoir Diaphragm
Description
Honda Motorcycle ATV Rear Master Cylinder Reservoir Diaphragm - Replaces Honda OEM 45520-300-000. This master-cylinder reservoir diaphragm seals under the reservoir cap while allowing fluid level changes during brake or clutch operation.
Replace swollen, torn, hardened, or leaking diaphragms during reservoir service.
Product Details
| Part type | master-cylinder reservoir diaphragm |
|---|---|
| Replaces Honda OEM | 45520-300-000 |
| Position / side | Rear |
| Sold | individually |
Fitment / Compatibility
Fits Honda:
- GL1000 (1977-79)
- CB750F (1975-82)
- CB900C (1980-82)
- CB900F (1981-82, 2002-07)
- CB1000C (1983)
- CB1100F (1983)
- CX500TC (1982)
- FT500 (1982-83)
- VF500F (1984-86)
- CBR600F2 (1991-94)
- CBR600F3 (1995-98)
- CBR600F4 (1999-06)
- CBR600SE (1998)
- CBR600SJR (1996)
- CX650T (1983)
- NSA700A (2009)
- NT700V (2010)
- NT700VA (2010-11)
- VF700F (1984-85)
- VFR700F (1986)
- VFR700F2 (1986-87)
- RVF750R (1994)
- VF750F (1983-84)
- VFR750F (1986, 1994-97)
- VFR750R (1990)
- VFR800 (2002-09)
- VFR800A (2002-09)
- VFR800FI (1998-01)
- CBR900RE (2001)
- CBR900RR (1993-03)
- CB1000R (2011-13)
- CBR1000F (1987-96)
- RVT1000R (2000)
- VF1000F (1984)
- VF1000R (1985-86)
- CB1100 (2013)
- CBR1100XX (1997-03)
- GL1100 (1980-83)
- GL1100A (1982-83)
- GL1100I (1980-83)
- ST1100 (1991-02)
- ST1100A (1992-02)
- ST1100P (2003)
- VF1100C (1983-86)
- VF1100S (1984-85)
- VT1100C (1995-96)
- VT1100C2 (1995-96, 2000-07)
- GL1200 (1984)
- GL1200A (1984-86)
- GL1200I (1984-86)
- GL1200L (1985)
- GL1200SEI (1986)
- VFR1200F (2010-13)
- VFR1200FD (2010-13)
- CBX1050 (1979-82)
- ST1300 (2003-10)
- ST1300A (2003-13)
- ST1300P (2005)
- ST1300PA (2006-13)
- VT1300CR (2010-13)
- VT1300CRA (2010-13)
- VT1300CS (2010-13)
- VT1300CSA (2010-13)
- VT1300CT (2010-13)
- VT1300CX (2010-13)
- VT1300CXA (2010-13)
- VT1300CTA (2011-13)
- VTX1300C (2004-09)
- VTX1300R (2005-09)
- VTX1300S (2003-07)
- GL1800 (2001-13)
- GL1800A (2001-05)
- VTX1300T (2008-09)
- VTX1800C (2002-04)
- VTX1800C1 (2005-07)
- VTX1800C2 (2005-06)
- VTX1800C3 (2005-06)
- VTX1800F1 (2005-08)
- VTX1800F2 (2005-07)
- VTX1800F3 (2005-08)
- VTX1800N1 (2004-08)
- VTX1800N2 (2004-07)
- VTX1800N3 (2004-08)
- VTX1800R (2002-03)
- VTX1800S (2002-03)
- VTX1800R1 (2004-07)
- VTX1800R2 (2004-07)
- VTX1800R3 (2004-07)
- VTX1800S1 (2004-06)
- VTX1800S2 (2004-06)
- VTX1800S3 (2004-06)
- VTX1800T1 (2007-08)
- VTX1800T2 (2007)
- VTX1800T3 (2008)
Fits Honda - ATV:
- ATC250R (1982)
- TRX420FA (2009-14)
- TRX420FPA (2009-14)
- TRX650FA (2003-05)
- TRX650FGA (2004-05)
- TRX680FA (2006-14)
- TRX680FGA (2006-09)
Before Ordering
- Use OEM/reference 45520-300-000 to confirm the correct application
- Confirm reservoir shape, cap style, diaphragm outline, fluid compatibility, brake/clutch position, and front/rear application
